Description

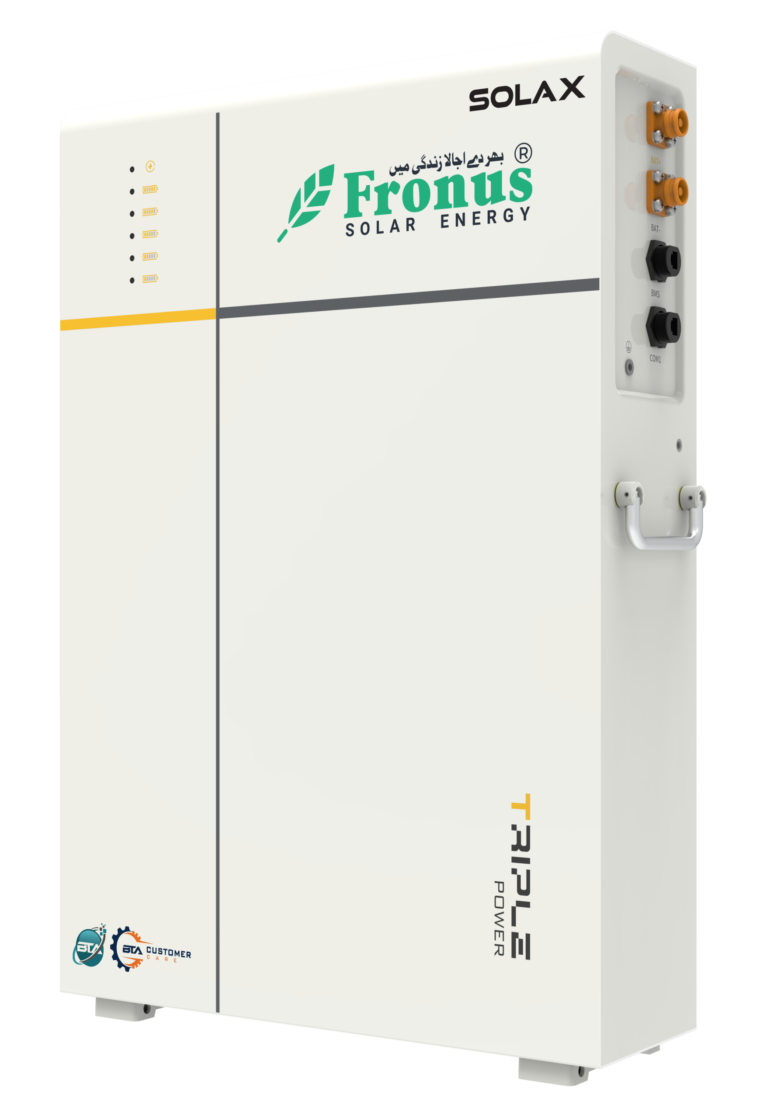

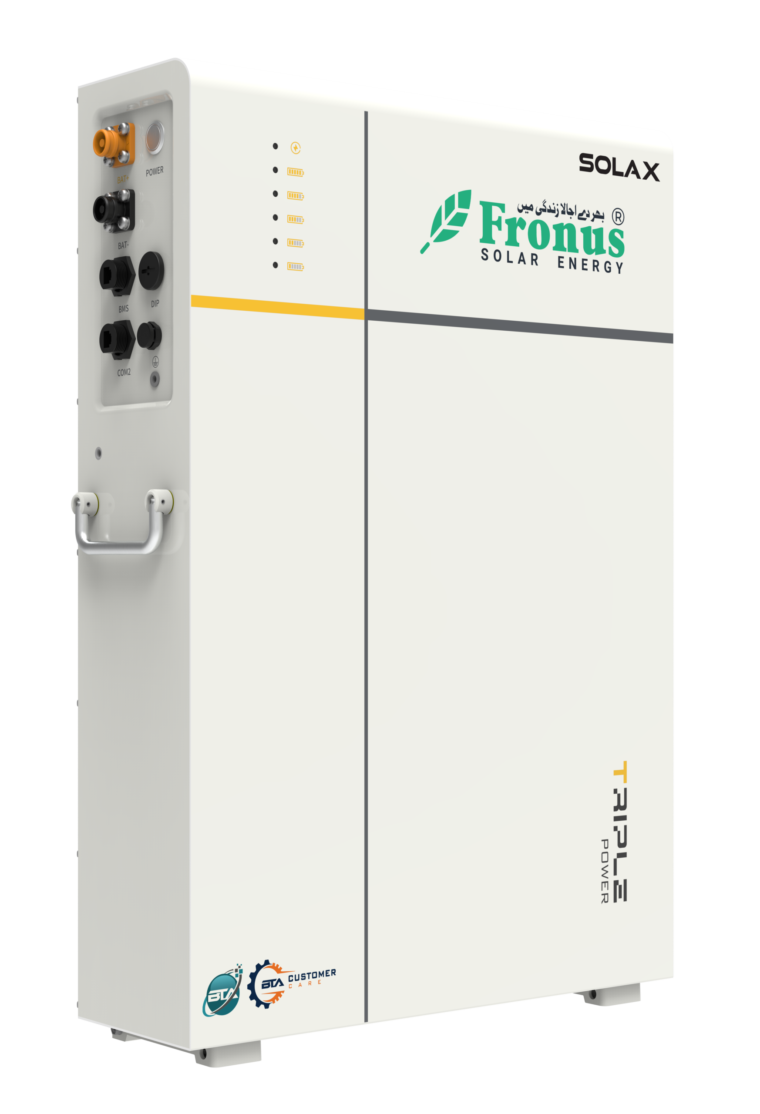

Technical Specifications of Fronus TP-LD53
| Model | TP-LD53 |
|---|---|
| Number of Module Series | 1 |
| Nominal Capacity [kWh] | 5.3 |
| Usable Capacity (90% DOD)① [kWh] | 4.7 |
| Max. Output Current [A]② | 100 |
| Peak Discharge Current [A, s] | 200, 10 |
| Weight [kg] | 48.5 |
| Dimension （L x W x H）04 | 645 x 150 x 430 |
| Nominal Voltage [V] | 51.2 |
| Operating Voltage Range [V] | 45 to 58 |
| Battery Type | Lithium Iron Phosphate |
| Communication Port | CAN / RS485 |
| Operation Temperature [℃] | 0 to 53 (charge) ; -20 to 53 (discharge) |
| Storage Temperature [℃] | 30 to 50 (6 months) ; -20 to 30 (12 months) |
| Ingress Protection | IP65 |
| Colling concept | Natural |
| Relative humidity [%] | 5 to 95 (Non-condensing) |
| Altitude [m] | ＜3000 |
| Warranty [years] | 5 |
| Cycle Life③ [90% DOD] | > 6000 |
| Certification | IEC62619, IEC62040, CE, UN38.3 |
