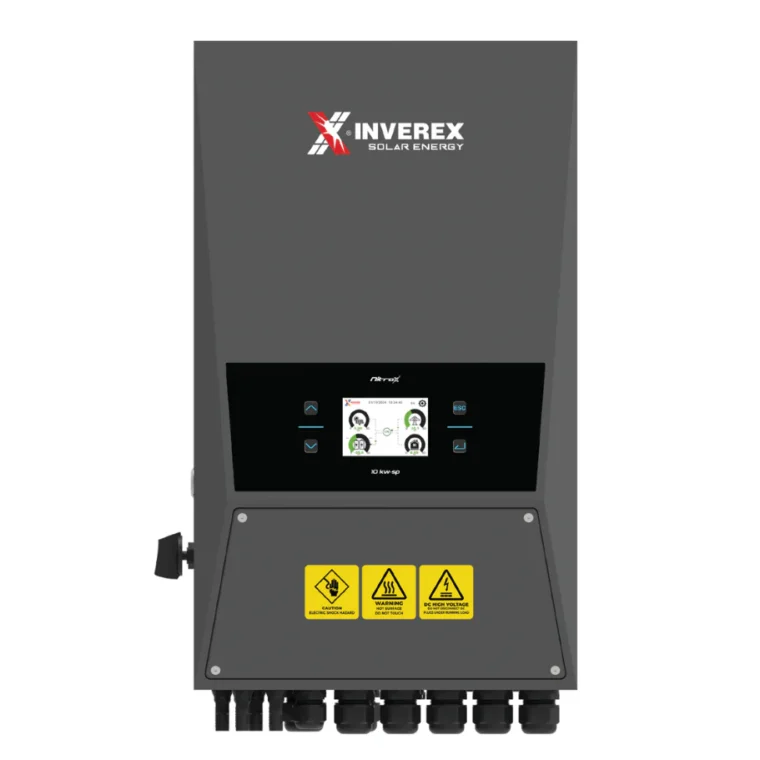

The Inverex Nitrox 10KW Single Phase is a high performance hybrid solar inverter featuring advanced MPPT technology and smart energy management. It supports both lithium-ion and Deep Cycle Tubular & lead-acid batteries and can handle a maximum PV Input power of 16000 W. With an IP65 protection rating, it is designed to work for both on-grid & off-grid solar applications. This hybrid inverter comes with a 5 year comprehensive warranty, which is suitable for choice for residential or commercial systems.
Key Features
Hybrid Solar Inverter – Supports both grid-tied and off-grid functionality for flexible power solutions.
High PV Input Power (16,000W) – Ensures maximum solar energy utilization with high power capacity.
Advanced MPPT Technology – Delivers over 99% efficiency for optimal solar power tracking.
Battery Compatibility – Works with both lead-acid and lithium-ion batteries.
Smart Monitoring & Control – Supports GPRS, WIFI, Bluetooth, and 4G connectivity for remote monitoring.
Surge Protection & Safety – TYPE II DC and AC surge protection for enhanced system security.
IP65 Protection Rating – Durable design suitable for outdoor and harsh environments.
Intelligent Cooling System – Efficient air cooling mechanism for optimal performance.
High Efficiency (97.6%) – Maximizes energy conversion while minimizing losses.
Multiple Communication Interfaces – Supports RS485, RS232, and CAN bus for seamless integration.
Technical Specification of Inverex Nitrox 10KW Single Phase 5G Hybrid Solar Inverter
DC Polarity Reverse Connection, AC Output Over current Protection,Thermal Protection,
AC Output over voltage protection, AC output short circuit protection, DC component monitoring, Over voltage load drop protection,Ground fault current monitoring,
Arc fault circuit interpreter (Optional), Power Network monitoring, Island protection Monitoring, Earth fault detection, DC input switch, DC terminal insulation impedance monitoring
Residual current RCD detection, surge protection level.
Surge Protection Level
TYPE II (DC), TYPE II (AC)
Communication Interface
RS485/RS232/CAN
Monitor Mode
GPRS/WIFI/Bluetooth/4G/LAN (optional)
Operating Temperature Range (°C)
40 to +60, >45°C Derating
Permissible Ambient Humidity
0-100%
Permissible Altitude
2000m
Noise (dB)
<30
Ingress Protection (IP) Rating
IP 65
DC Injection Current
<0.5% In
Grid Regulation
IEC 61727, IEC 62116, CEI 0-21, EN 50549, etc.
Operating Temperature (°C)
-40 to +60, >45°C derating
Inverter Topology
Non-Isolated
Over Voltage Category
OVC II (DC), OVC III (AC)
Cabinet Size (W x H x D mm)
343×580×258 (Excluding Connectors and Brackets)
Weight (kg)
25.2 KG
Cooling Type
Intelligent Air Cooling
Warranty
5 Years Warranty (The warranty period depends upon the final installation site of the inverter. More info please refer to the warranty Policy)
Grid Regulation
IEC 61727, IEC 62116, CIE 0-21, EN 50549, NRS 097, RD140, UNE 217002, OVE Richtlinie R25, g99, VDE -AR-N-4105
Safety EMC standards
IEC/EN 61000 -6-1/2/3/4, IEC/EN 62109-2
The Inverex Nitrox 10KW SP-5G 48V 1P65 hybrid solar inverter price in Pakistan is Rs. 499,000 as of June 23, 2026.
