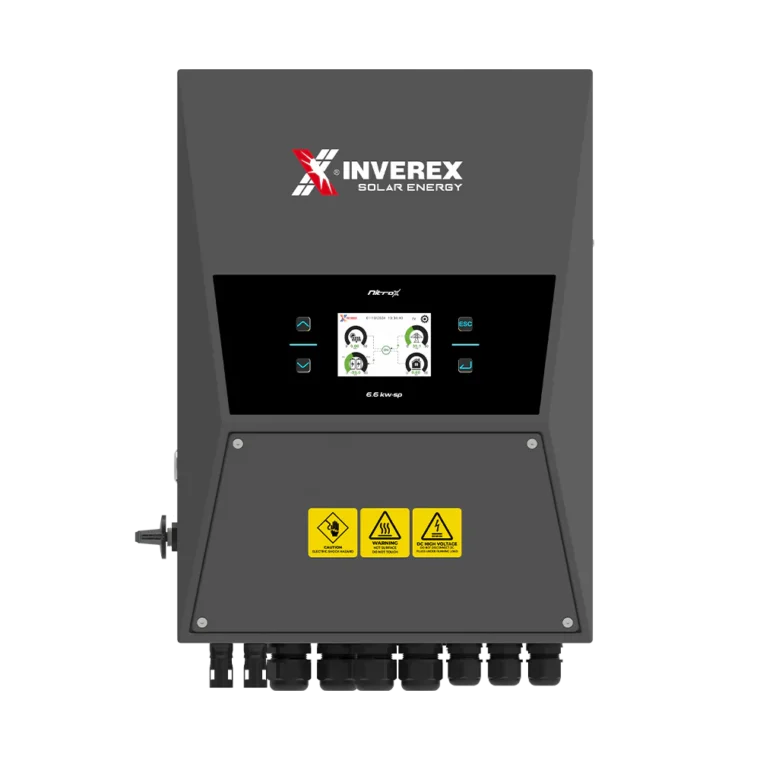

The Inverex Nitrox 6.6KW Single Phase is a high performance hybrid solar inverter featuring advanced MPPT technology and smart energy management. It supports both lithium-ion and Deep Cycle Tubular & lead-acid batteries and can handle a maximum PV Input power of 10560 W. With an IP65 protection rating, it is designed to work for both on-grid & off-grid solar applications. This hybrid inverter comes with a 5 year comprehensive warranty, which is suitable for choice for residential or commercial systems.
Key Features
10.5KW PV Input: Wide 150–425VDC MPPT for max energy capture Dual MPPTs: Independent strings (2/1+1) for efficient tracking 140A Charge/Discharge: Fast cycles, perfect for large systems Parallel Ready: Stack up to 16 units, both on-grid & off-grid Touch LCD + IP65: Vibrant screen in weatherproof casing AC Coupling: Retrofit-friendly for system upgrades Time-Based Battery Mode: 6 customizable time slots for charging/discharging Generator Support: Stores DG energy for hybrid setups Silent Operation: Under 30 dB noise, suitable for indoor use Air Cooling: Smart thermal control from -40°C to +60°C Advanced Protections: Over current, islanding, surge, fault detection High Efficiency: 97.6% peak efficiency with <0.5% DC ripple Smart Communication: RS485/RS232/CAN + optional WiFi/4G 5-Year Warranty: Backed by trusted Inverex support
DC Polarity Reverse Connection, AC Output Overcurrent Protection, Thermal Protection,
AC Output over voltage protection, AC output short circuit protection, DC component monitoring, Over voltage load drop protection, Ground fault current monitoring,
Arc fault circuit interpreter (Optional), Power Network monitoring, Island protection Monitoring, Earth fault detection, DC input switch, DC terminal insulation impedance monitoring
Residual current RCD detection, surge protection level.
Surge Protection Level
TYPE II (DC), TYPE II (AC)
Communication Interface
RS485/RS232/CAN
Monitor Mode
GPRS/WIFI/Bluetooth/4G/LAN (optional)
Operating Temperature Range (°C)
40 to +60, >45°C Derating
Permissible Ambient Humidity
0-100%
Permissible Altitude
2000m
Noise (dB)
<30
Ingress Protection (IP) Rating
IP 65
DC Injection Current
<0.5% In
Grid Regulation
IEC 61727, IEC 62116, CEI 0-21, EN 50549, etc.
Operating Temperature (°C)
-40 to +60, >45°C derating
Inverter Topology
Non-Isolated
Over Voltage Category
OVC II (DC), OVC III (AC)
Cabinet Size (W x H x D mm)
340×470×258 (Excluding Connectors and Brackets)
Weight (kg)
17.65 KG
Cooling Type
Intelligent Air Cooling
Warranty
5 Years Warranty (The warranty period depends on the final installation site of the inverter. For more information, please refer to the warranty policy.)
Grid Regulation
IEC 61727, IEC 62116, CIE 0-21, EN 50549, NRS 097, RD140, UNE 217002, OVE Richtlinie R25, g99, VDE -AR-N-4105
Safety EMC standards
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-2
The Inverex Nitrox 6.6 kW single-phase IP65 hybrid solar inverter price in Pakistan is Rs. 260000/ as of June 23, 2026.
